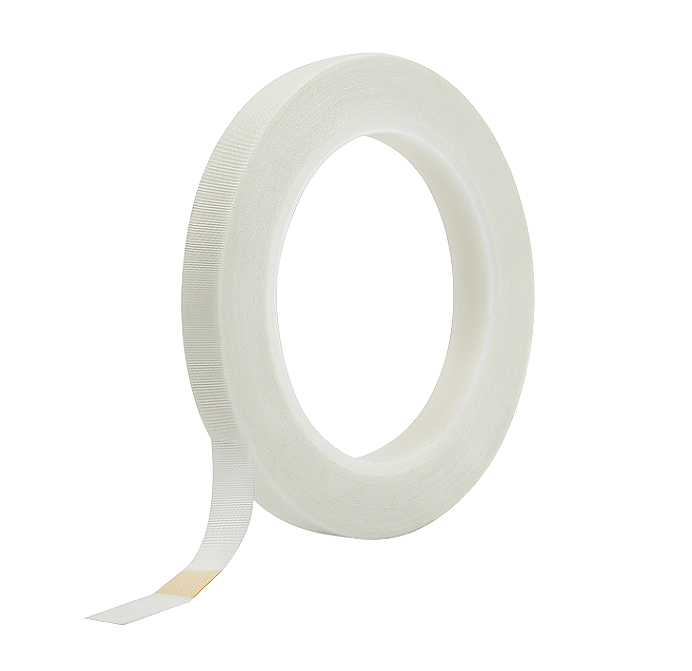

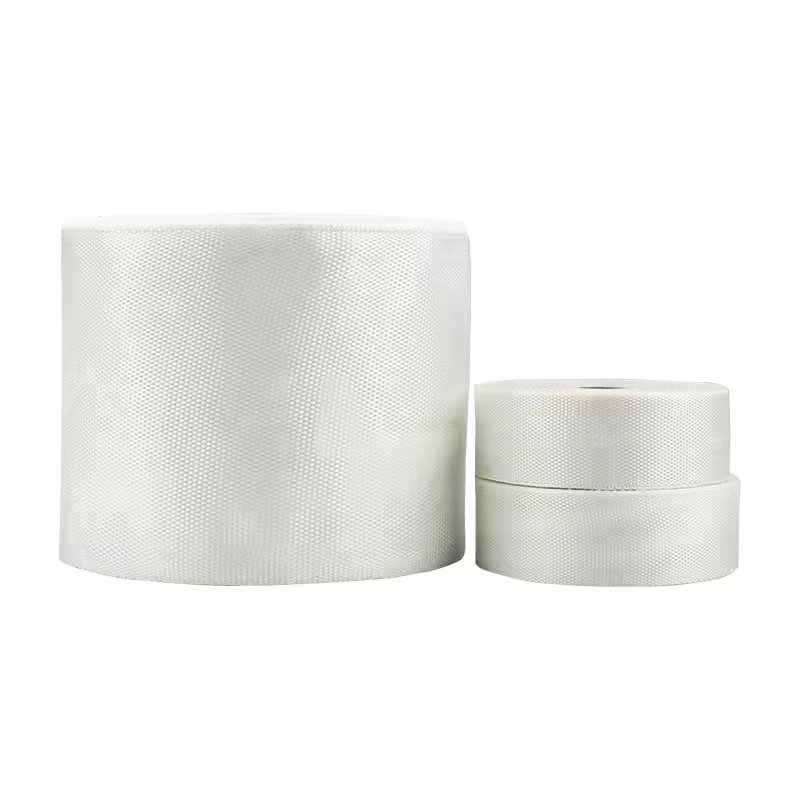

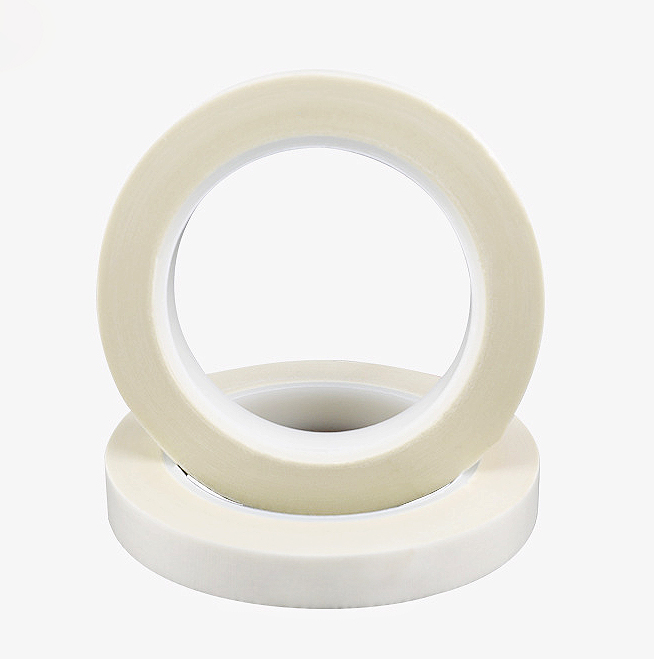

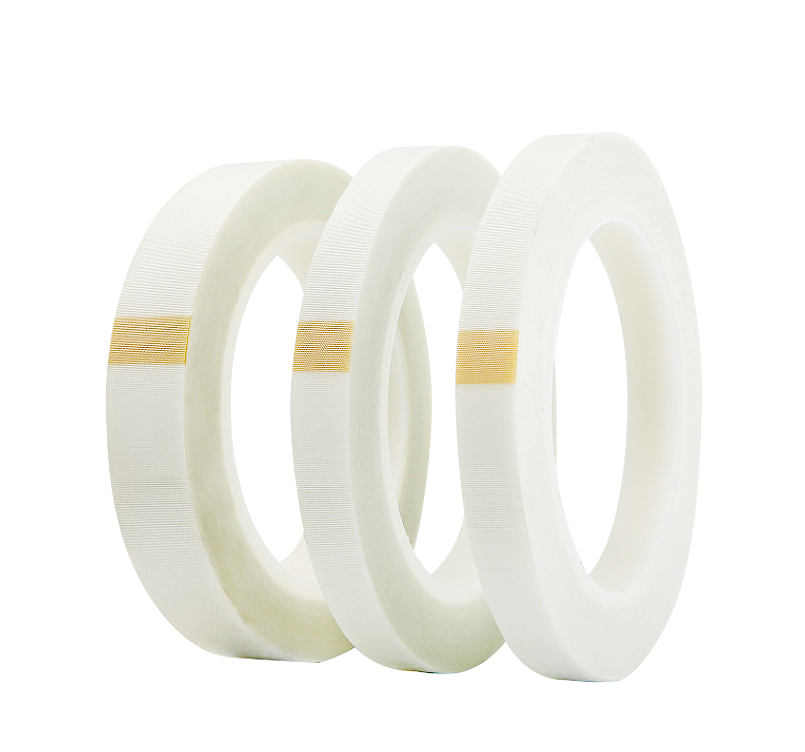

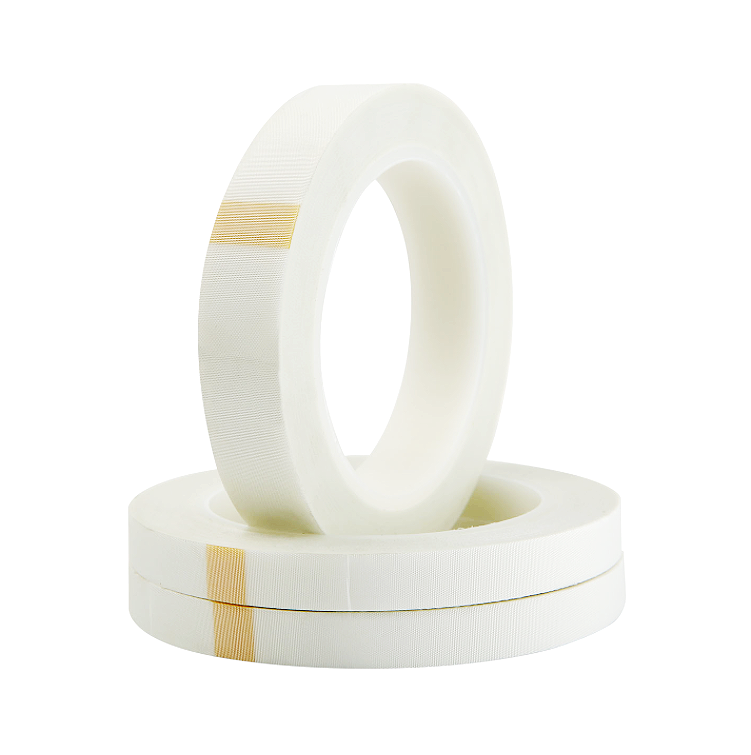

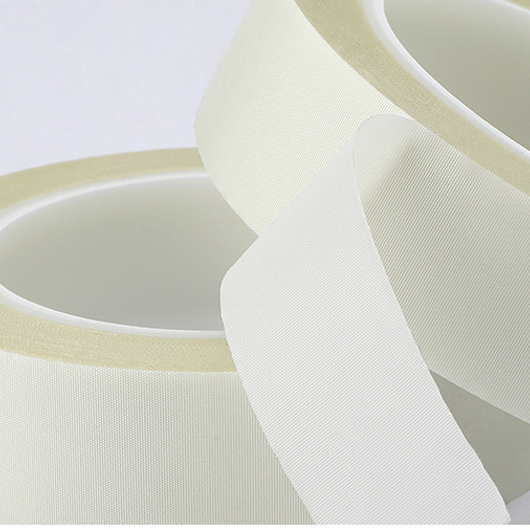

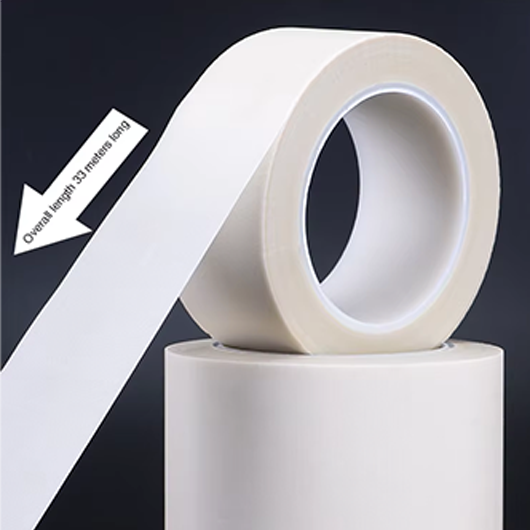

Fiberglass Cloth Tape

Fiberglass cloth tape is made of 0.13mm thick imported glass cloth coated with high performance silica gel. The tape has a thickness of 0.18mm±0.02mm. The product has good temperature resistance (-50°C～260°C), strong adhesive force, strong toughness and tear resistance. Other characteristics, high-strength insulation protection for H-class heat-insulating insulation lashing, various high-temperature sandblasting protection and lithium manganese battery insulation wrapping. The tape is particularly cost-effective, and the tape can be used to replace the glass cloth tape such as 3M-69#\P212\TESA4618. It has been widely used in air-conditioning electrical appliances, automotive electronics, digital electronics and other high-temperature insulation protection occasions.

Adhesive:Silicone

Product details

Size:

Thickness:0.18mm

Jumbo Size:500mm*30m

Special size can be OEM/ODM

Features

1.H-class high temperature resistant 392°F (200°C)

2.Nice dielectric strength

3.Insulation and solvent-resistant

4.Silicone adhesive
5.removes cleanly with no glue residue.

6.Abrasion resistance and good mechanical strength

Application

1.Insulating electric and induction-type furnace power supply leads

2.Securing high-temperature,non-PSA insulation (such as asbestos and glass) in high-temperature areas

3.Splicing silicone-covered glass wire where splices require more abrasion resistance and mechanical strength than can be provided by silicone tapes.Insulating Class “H” dry-type transformer leads.

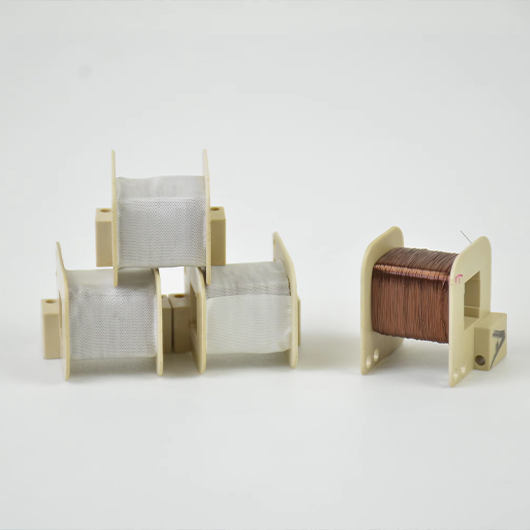

4.Used in a variety of coil/transformer and motor applications, including an outer wrap or bobbin wound coils, banding arbor wound coils, lead pad hold down,end turn and lead anchor and connection.
